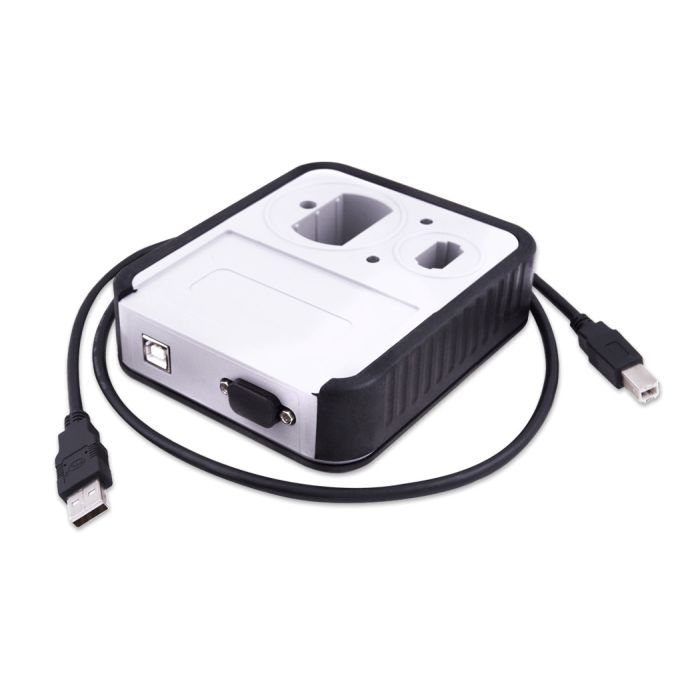

ABRITES PROTAG programming software

PROTAG software is the latest generation tool for working with keys and keypads used in the latest authentication systems and immobilizers.
This software provides all the current Tag programming features and more. PROTAG is ready to program all the keys and remote controls produced by your company.
PROTAG Abrites gives customers access to many new features, has a solution every time software is needed. ABRITES PROTAG covers all key recognition and enables the reading, programming and authentication of low-frequency transponders (of all types, including the latest generation of remote controls such as those manufactured by Mercedes-Benz ™ with infrared keys).

- The new PROTAG software also comes in a comfortable, ergonomic shape for ease of use, and includes slots for different sizes of keypads, keys and cards to be programmed.
- This device is durable when used in harsh conditions. This also limits the error position of the keypad positioning.
- You will find the TA31 Abrites extractor in the box.

Functions:

- Scanning / programming / confirmation
- ISO / IEC 14443 A / MIFARE Classic 1K, MIFARE Classic 4K, MIFARE Ultralight, MIFARE Ultralight C, MIFARE PLUS and MIFARE DESFire
- ISO / IEC 14443 B and FeliCa
- ISO / IEC15693, ICODE

Scanning / programming / confirmation

- All types of remotes including NXP® (hitag-3, hitag-pro, hitag-aes ...), Texas® (DST-AES, CRAID-AES ....)
- Operates in the 300-348 MHz / 387-464 MHz / 779-928 MHz ISM / SRD bands
- Supports 2-FSK, 4-FSK, GFSK and MSK, as well as OOK and flexible ASK formation
- Designed for infrared keys made from Mercedes-Benz ™
- A new AVDI interface or an active AMS is required to purchase this product.
