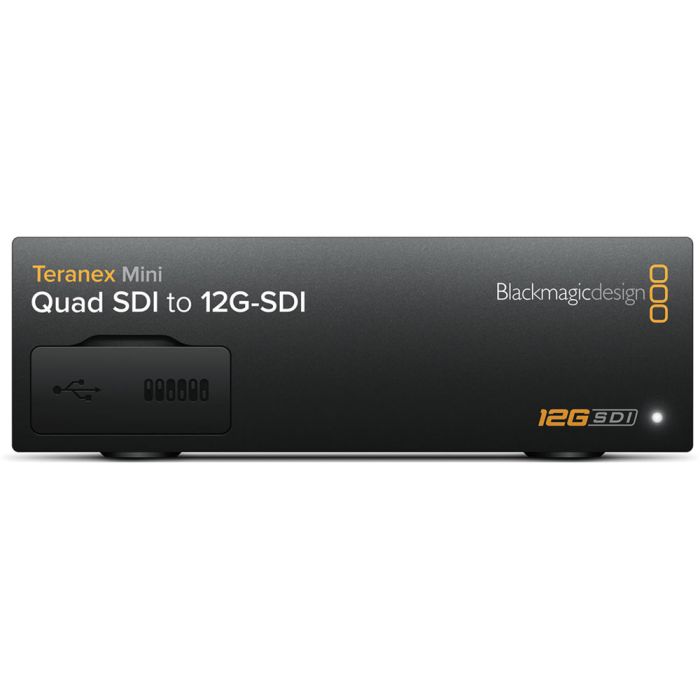

Blackmagic Design Teranex Mini Quad SDI to 12G-SDI (CONVNTRM/DA/QDSDI)
View larger image
Blackmagic Design Teranex Mini Quad SDI to 12G-SDI (CONVNTRM/DA/QDSDI)
Ražotājs
Blackmagic
Ikmēneša maksājums no €20.08
Pievienot vēlmju sarakstam
Salīdzināt
Apraksts
Specifikācija
Atsauksmes
Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.
Connections
SDI Video Inputs
4 x 12G-SDI SD/HD/2K/4K auto switching.
Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
SDI Video Outputs
2 x 12G‑SDI.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Embedded Audio Support
16 channels.
Updates and Configuration
USB or Ethernet
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
Software
Software Control
Mac™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Windows 10, 64-bit.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
100 - 240V AC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Teranex Mini Quad SDI to 12G‑SDI
