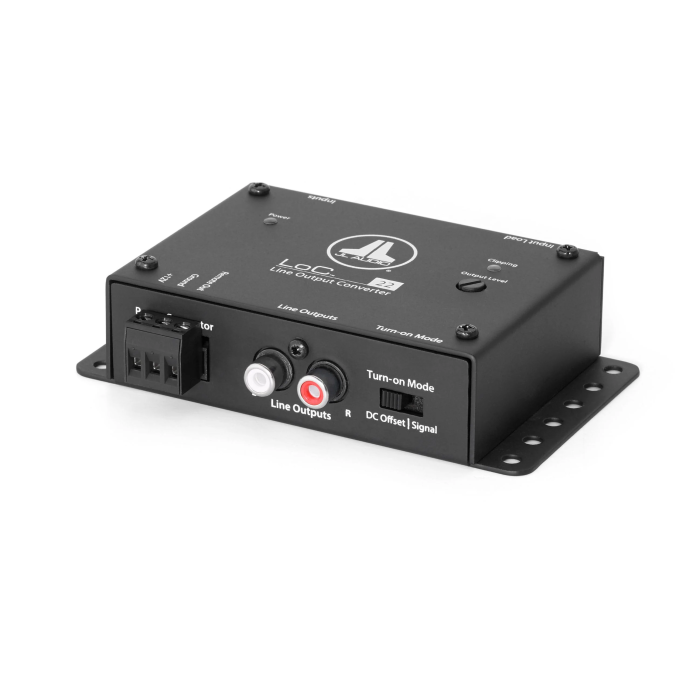

JL Audio LoC-22

General Specifications:

Power Supply Type: Switching, MOSFET PWM, Regulated
Operating Voltage: 9 - 16 V DC
Standby Current Draw: <1.6 mA
Operating Current Draw: 0.13 A at 13.8V
Frequency Response: 3 Hz - 32 kHz (+0 dB, -1dB)
S/N Ratio @ 2V RMS: Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth)
Remote Output Capacity: 100 mA (maximum)
Recommended Fuse Value: 1 A
Recommended Fuse Type: Fast-Acting, ATO/ATC or similar
Input Channels: Two
Input Type: Differential-Balanced
Input Voltage: 40V RMS per channel (maximum)
Input Impedance: Normal: 20kΩ ; Low Z: 60Ω
Turn-On Threshold: Signal-Sensing: 5 mV On/3.5 mV Off at1 kHz (Left Input) DC-Offset: 4.5 V
Output Channels: Two
Analog Output: Unbalanced, stereo RCA jacks
Max. Unclipped Output: 8V RMS
Output Impedance: 450 Ω
Gain Range: -27.3 dB (full CCW) to +3.2 dB (full CW)
THD+N: 0.01% at 2V RMS (1kHz)
