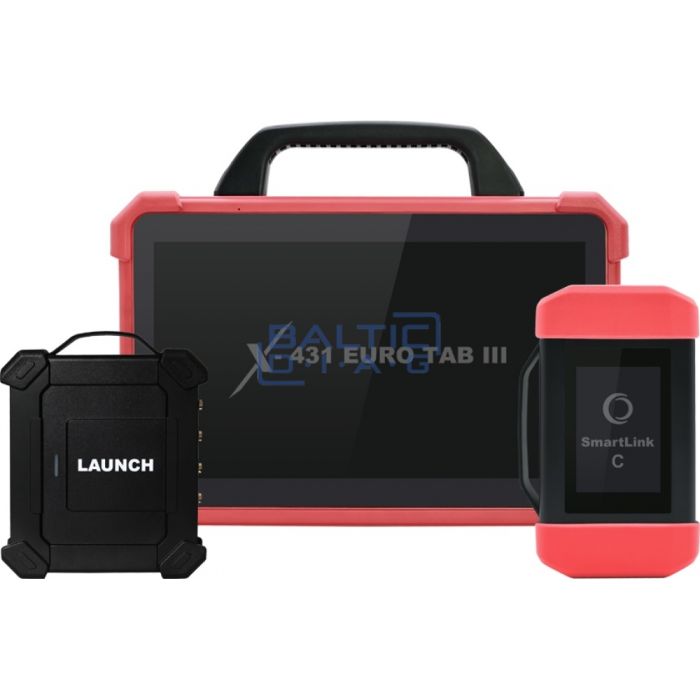

LAUNCH X-431 Euro Tab III Universal diagnostic equipment

Laucnh X-431 EURO TAB III works with Android 9 system, is the latest X-431 series diagnostic device and the latest professional series vehicle diagnostic device developed by LAUNCH. It reflects all the technologies and diagnostic advantages of the previous X-431 EURO TAB II model, such as extensive coverage of car models, powerful testing function, abundant special functions, accurate test data and more. The new diagnostic tool is integrated with the Guided Diagnosis feature, known as LAUNCH Electronic Database, which works with HaynesPro to help diagnosticians with their day-to-day work.

The kit includes Smartlink C as a standard VCI, supported with the LAUNCH Super Remote Diagnosis System (SRDS), DoIP, PassThru, and the ability to expand the device using HD Truck software, which can be purchased separately. The kit includes a new LAUNCH O2-1 ScopeBox for sensor testing, a 13.3 "HD display, a newly developed APK interface for more practical functions, and all the necessary cables and accessories.

LAUNCH SRD consists of SmartLink C, SmartLink B and Smartlink platform. SmarLink C can be connected to the vehicle and SmartLink B with any diagnostic device. Remote diagnostics will be performed via the Smartlink platform.

An additional activation card is required to activate the SRD.

How is it different from the previous X-431 Euro TAB II:

The new device is equipped with an O2-4 oscilloscope module
The set includes TSGUN & 4pcs TPMS Sensors
The new device supports remote diagnostics
X-431 Euro TAB II screen 10.1 "and the new X-431 Euro TAB III 13.3"
The X-431 Euro TAB II has 4GB / 64GB of memory, while the new one has the X-431 Euro TAB 8GB / 256GB
Operating system: X-431 Euro TAB II - Android 7, X-431 Euro TAB III - Android 9

Service functions:
Electric parking brake
Oil change function
Calibration of the steering angle sensor
Attaching the battery
Brake release system configuration
DPF functions
Nozzle coding
Throttle valve calibration
Tire pressure monitoring system functions
Crankshaft Position Sensor Calibration
IMMO
Calibration of adaptive driving lights
Reset window adjustment
Sunroof application
Chassis calibration
Exhaust gas recirculation
Fuel mixture application
Reset AdBlue
Coolant ventilation calibration
Nitric oxide sensor reset
Driver seat memory programming
Start-Stop Reset
Transport mode calibration
Tire diameter - odometer tethering
Restoration of the adaptive value of the transmission
Menu language programming
DPF regeneration
Cruise control system programming
Air conditioning system maintenance
Engine angle calibration
Engine power balance monitoring
Battery diagnostics

Technical data:
Operating system: Android 9.0
CPU CPU: 2.0 GHz, 8 cores
Screen: 13.3 ", 1920 x 1180 mm
Internal memory: 8 GB
Capacity: 256 GB, supports SD card up to 128 GB
WiFi: 2.4 GHz / 5 GHz
USB: yes
Bluetooth: yes
Battery: 9360 mAh, 7.6 V, 71.1 Wh
Camera: 8 MP Front, 16 MP Rear
Dimensions: 353 x 236 x 71 mm

SmartLinkC add-on:
Supports passenger and commercial vehicles
Remote diagnostics
DoIP compatible
PassThru J2534, D-PDU, RP-1210
Routine diagnostics
J2534 Pass-Through integrated for online programming:
To use the J2534 features, the user needs to download the appropriate tool installation package from the Launch official website. Users can purchase a diagnostic program from the original manufacturer and use it with the Launch device.

J2534 original software:
Toyota / Lexus original program Techstream test;
GM original program General Motors GDS2 test;
Honda / Acura original program HDS (Honda Diagnostic System) test;
Volkswagen / Audi original software ODIS test, Offboard diagnostic interface configuration;
Land Rover / Jaguar
