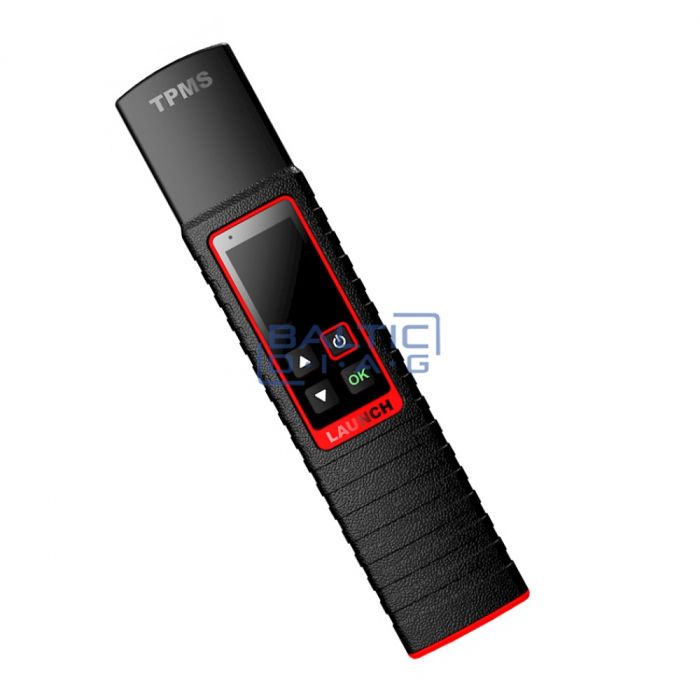

LAUNCH X-431 TSGUN TPMS equipment

Launch X-431 TSGUN is a professional TPMS module with integrated sensor activation, reading, programming and training function. It reads information such as tire pressure and temperature, and works with sensors with different frequency signals. The X-431 TSGUN is easy to carry and simple to operate. It can only be used with LAUNCH X-431 diagnostic devices and offers a comprehensive solution for tire pressure monitoring systems.

Also compatible with the old version of LAUNCH TPMS sensors. The LAUNCH RF (radio frequency) sensor, also known as the TPMS sensor, is a universal TPMS sensor for the aftermarket. As a radio frequency sensor, it can only be programmed using the X-431 TSGUN and in conjunction with the LAUNCH X-431 series.

Features:

TPMS function: 315/433 MHz
Tech-In process via OBD interface
ID generation - automatic or manual
Supports 98% of all models
Reads tire pressure data
ID sensor - reads, copies, programs
Detailed description of functions
Supports reprogramming

Technical data:

Screen: 1.77 inches, 168 x 128
DC input voltage: 5 V
Battery: 3,000 mAh lithium
Operating temperature: - 10 to 50 ° C
Operating current: ≤1A
Dimensions: 252 x 54 x 30 mm
Weight: 450 g
Bluetooth
